REA ScanCheck 3

The REA Scan Check 3 Verifier is a portable and flexible device for verifying

• Contactless inspection with a specifically optimised laser which resembles a scanner register
• Simple positioning with the visible laser beam
• Keypad with 22 input keys for configuring and entering comments on-site
• Suitable for measuring large and small barcodes
• Memory for up to 1000 readings
• USB connection for a portable printer
• Reliable PC communication per network possible
• DHCP capable

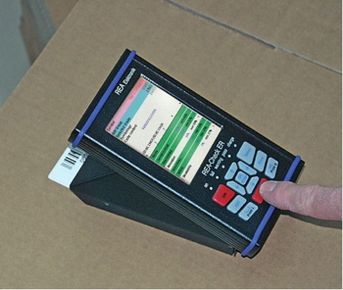

The REA Check ER Verifier is a portable inspection device for verifying barcodes

• Inspection with an specifically optimised CCD inspection system with LED illumination
• Small and compact design
• Positioning guide by means of a code display
• Suitable for reading barcodes up to a maximum width of 75 mm
• Memory for up to 1000 readings
• USB connection for portable printer
• Reliable PC communication via network possible
• DHCP capable

The REA MLV 2D Verifier can confirm perfect print quality and read rates

You can inspect the quality of your optical codes while always keeping everything in sight.
The REA MLV-2D is an inspection device which complies with the international equipment norms for barcodes and matrix code inspection unit requirements.

The contactless reading of optical codes takes place while maintaining defined angles, distances and lighting, this enables precise and always reproducible results and quality evaluations.
Inspect your barcodes and 2D matrix codes, thereby maintaining a higher first reading rate.

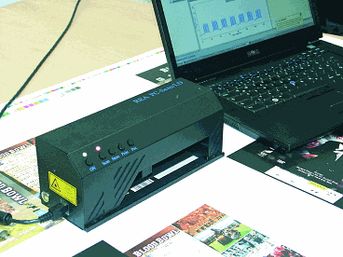

The REA PC-Scan/LD3 is an inspection device which complies with the international equipment norms for barcode inspection devices, and it has the following unique characteristics:

• Automatic calibration of the contrast before every reading for the highest possible measuring accuracy
• Integrated metric standard for exact measurement of width and length
• Standard 45° steady illumination angle over the entire measuring range (155 mm or 240 mm)
• Standard 90° steady sensor angle over the entire measuring range (155 mm or 240 mm)
• With the measuring slide a constant measurement distance over the entire measuring range is guaranteed
• Highest resolution (reading point every 8 µm over the entire measuring range)

The REA PC-Scan/LD3 is the only barcode inspection device worldwide, that has these unique characteristics, and is therefore can guarantee the highest measurement accuracy and reproducibility, while at the same time being simple to use.
